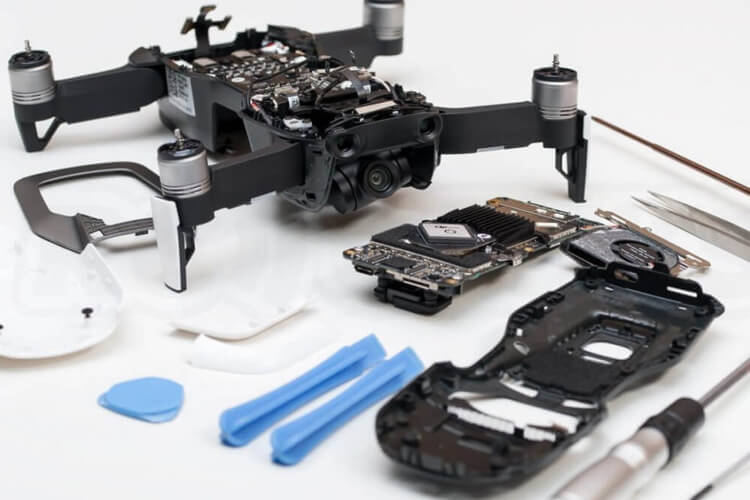

A DJI drone teardown is the process of carefully disassembling the drone to inspect or repair its internal parts. This involves removing external components like the propellers, shell, and battery, then accessing critical modules such as the motherboard (flight controller), GPS, vision sensors, ESC board, gimbal, and camera. Proper teardown not only helps with repair and maintenance but also provides insights into how DJI drones are engineered.
Step-by-Step DJI Drone Teardown Process
1. Remove External Components
-
Detach the propellers and battery.
-
Take off any covers or protective plates to expose screws and connectors.
2. Open the Drone Shell
-
Use a Phillips screwdriver to remove the screws.
-
Gently pry open the main shell, being cautious of clips or glue that may be securing it.
3. Access Internal Modules
-
GPS Module: Unscrew and disconnect ribbon cables to release the GPS unit, often located under a heat spreader.
-
Motherboard (Flight Controller): Remove screws and retaining tape after disconnecting other modules.
-
Vision Sensors: Carefully remove the front and bottom vision modules by undoing screws and disconnecting fragile ribbon cables.
-
Gimbal & Camera Assembly: Unplug the wiring, detach rubber mounts, and lift the gimbal off gently.
-
ESC Board (Electronic Speed Controller): Disconnect motor and LED connectors, then unscrew the board.
4. Remove Drone Arms and Landing Gear
-
Unscrew the joints securing the arms.
-
Pull the arms off the shafts with care, ensuring no cables are damaged.
Key Components You’ll Encounter
-
Motherboard (flight controller)
-
GPS module
-
Vision sensors (front and bottom)
-
Gimbal and camera system
-
ESC board
-
Motors and antennas
Tools Required for DJI Teardown
-
Precision Phillips screwdriver
-
Plastic prying tool or spudger
-
Tweezers for handling ribbon cables
-
Optional: hot air gun for loosening glued components
Common Challenges During DJI Drone Disassembly
-
Clips and Glue: Many parts are held by clips or adhesive, requiring patience to avoid breaking them.
-
Delicate Ribbon Cables: These connectors are fragile and can easily tear if pulled incorrectly.
-
Replacement Parts Availability: While propellers and batteries are easy to buy, components like camera assemblies or motor arms may be hard to source as standalone parts.
Final Thoughts
Performing a DJI drone teardown is useful for repair, diagnostics, and gaining a deeper understanding of drone hardware. However, it requires technical skill, patience, and the right tools. If you are not confident, consider consulting a professional drone repair service to avoid accidental damage.
